SR2 (B3) Mesh Fencing

LPS 1175 SR2 (B3) mesh fencing for demanding high-security perimeters. Heavy-duty close-aperture mesh, continuous clamp bars and anti-tamper rails provide robust protection for prisons, utilities, data facilities and industrial sites.

Free Quote

SR1 (A1) 358 mesh fencing is designed for projects that require a defined level of resistance to forced entry together with clear visibility across the perimeter.

LPS 1175 SR2 (B3) Security-Rated Mesh Fencing

SR2 (B3) MeshGuard is designed for projects requiring a higher level of forced-entry resistance than an SR1 (A1) perimeter. The complete system complies with LPS 1175 SR2 (B3) Issue 8 and BS 1722 Part 14.

The rigid panel uses single 4mm horizontal wires and 10mm vertical wires welded at every intersection. Its 76.2mm x 12.7mm close-aperture layout limits grip and access through the mesh while maintaining visibility across the protected perimeter.

Continuous steel clamp bars and a 60mm x 60mm x 5mm horizontal anti-tamper angle rail reinforce the system. Stainless-steel security fixings connect the mesh, rails, cleats and posts as part of the specified assembly.

Data Sheet

Where Can SR1 (A1) 358 Mesh Fencing Be Used?

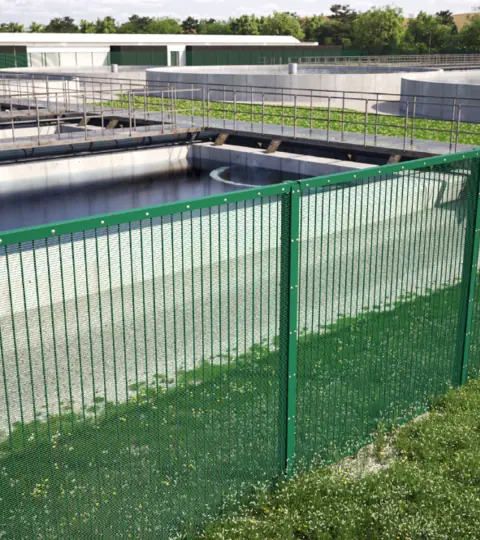

Where Can SR2 (B3) Mesh Fencing Be Used?

This security-rated fencing system is suitable for sites where enhanced resistance, controlled access and clear perimeter visibility are required. Typical applications include:

Mental health facilities
Utility and service-provider sites
Prisons and custodial environments
Sensitive data and communications facilities
Commercial and industrial premises
Infrastructure and restricted-access compounds
High-value storage and operational sites

Free Quote

Key Benefits of SR2 (B3) Mesh Fencing

SR2 (B3) security performance

The complete fencing system complies with LPS 1175 SR2 (B3) Issue 8, providing a recognised security classification for higher-risk perimeter specifications.

Heavy-duty close-aperture mesh

Single 4mm horizontal wires and substantial 10mm vertical wires form a rigid panel with 76.2mm x 12.7mm apertures. The narrow spacing helps restrict grip and access through the fence.

Reinforced anti-tamper rail

A 60mm x 60mm x 5mm horizontal steel angle rail reinforces the mesh assembly and protects vulnerable connection points as part of the security-rated system.

Continuous clamp-bar fixing

Continuous 5mm-thick steel clamp bars, ranging from 80mm to 150mm wide according to the arrangement, secure the panel along the posts and help resist levering or unauthorised removal.

Clear perimeter visibility

The open mesh format preserves sightlines through the fence, supporting natural surveillance and CCTV monitoring around sensitive or restricted sites.

Durable galvanised and coated finish

Steel components are galvanised or pre-galvanised as specified and finished with a minimum 100-micron polyester powder coating. RAL 6005 Moss Green and RAL 9005 Black are the standard colours.

SR1 (A1) 868 Mesh Fencing Specification

Product model: MeshGuard

Security standard: Complies with LPS 1175 SR2 (B3) Issue 8

Fencing standard: BS 1722 Part 14

Panel construction: Single 4mm horizontal wires and 10mm vertical wires welded at their intersections

Mesh aperture: 76.2mm x 12.7mm

Panel width: 2524.6mm overall

Nominal heights: 2000mm to 5200mm

Bottom clearance: 35mm recommended average; 100mm maximum

Top edge: Flat top with no protrusions

Wire grade: SAE 1008, BS 4102:1998 pre-galvanised wire

Wire protection: Zinc coating conforming to BS EN 10244-2:2009

Posts: RHS or SHS steel posts sized for the fence height and installation arrangement

Post steel grade: S275JR

Post protection: Pre-galvanised up to 3300mm nominal height; galvanised to BS EN 1461:2005 above this height and for base-plated posts

Clamp bars: Continuous 80mm-150mm wide x 5mm-thick slotted steel bars

Clamp-bar steel grade: S275JR

Anti-tamper rail: 60mm x 60mm x 5mm RSA horizontal angle rail

Anti-tamper rail steel grade: S275JR

Post angle cleat: 30mm x 5mm rolled-steel flat, minimum grade S235

Mesh-to-post fixings: M8 stainless-steel cup-square bolts, shear nuts and flat washers

Rail and cleat fixings: Stainless-steel cup-square bolts, security nuts, square washers and IP4-1 security screws as specified

Protective finish: Galvanised to BS EN ISO 1461 and polyester powder coated to BS EN 13438:2005

Powder-coating thickness: Minimum 100 microns

Standard colours: RAL 6005 Moss Green and RAL 9005 Black
