SR1 (A1) 868 Mesh Fencing

LPS 1175 SR1 (A1) rated 868 twin-wire mesh fencing for robust perimeter protection. Combining rigid panels with security fixings, it provides a strong, professional solution for commercial, industrial and high-security sites.

Free Quote

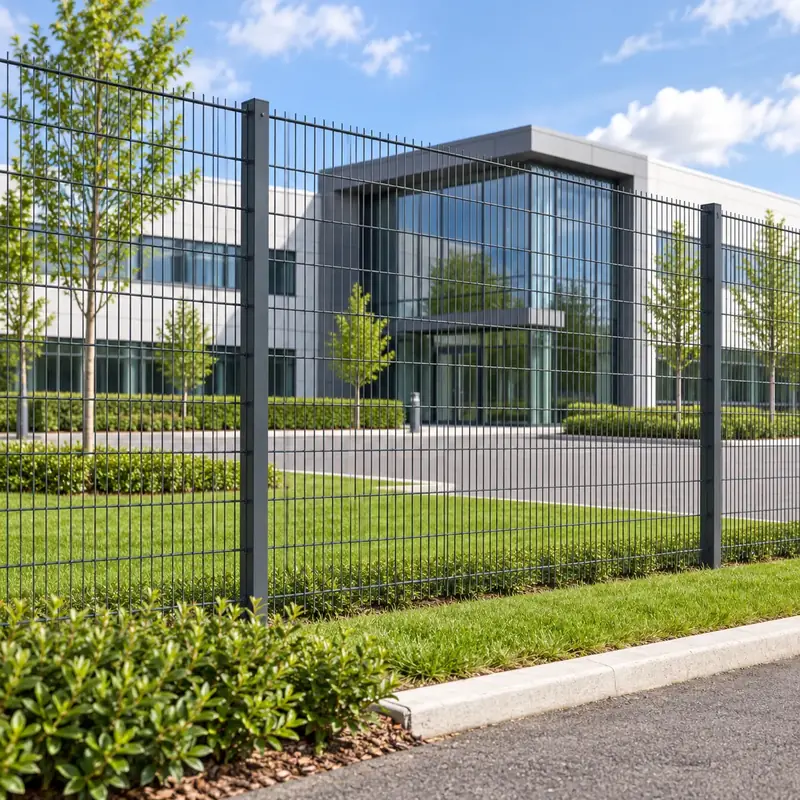

SR1 (A1) 868 mesh fencing is designed for projects that require a defined level of resistance to forced entry.

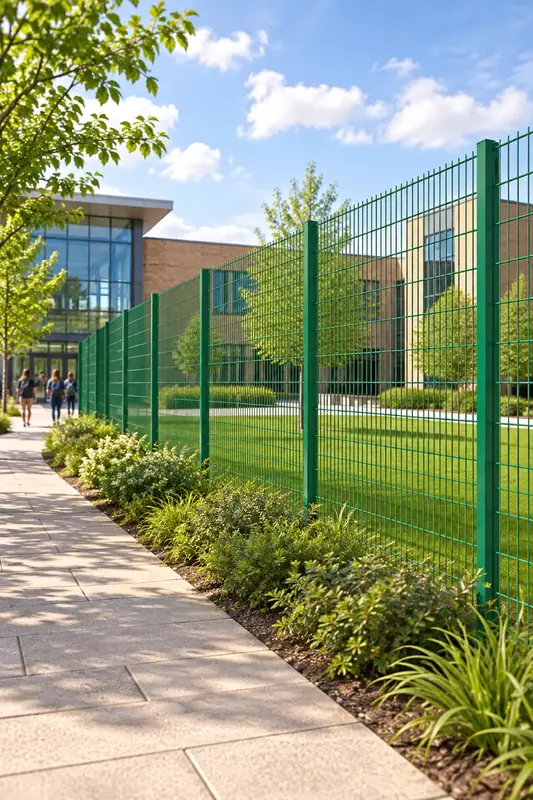

LPS 1175 SR1 (A1) Security-Rated Mesh Fencing

SR1 (A1) 868 mesh fencing is designed for projects that require a defined level of resistance to forced entry. The system complies with LPS 1175 SR1 (A1) Issue 8 and is manufactured for use as a strong, visible perimeter barrier.

The 868 construction uses two 8mm horizontal wires positioned around a single 6mm vertical wire. These wires are welded at each intersection to create a rigid panel. A continuous steel clamp bar and security fixings connect the mesh to the posts, helping to resist tampering while producing a neat, consistent finish.

This combination makes the system suitable for security-conscious sites that need strength, visibility and a less visually imposing alternative to solid barriers.

Data Sheet

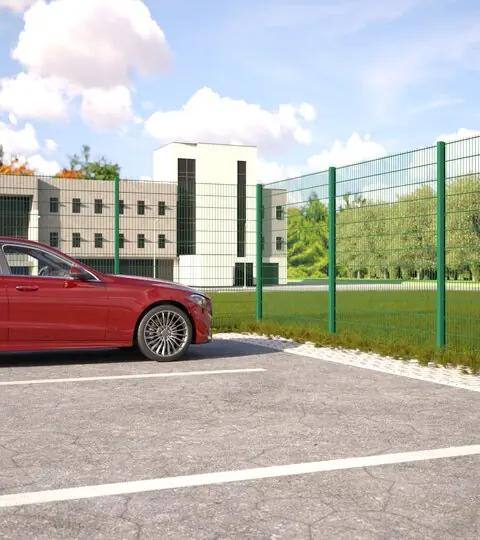

Where Can SR1 (A1) 868 Mesh Fencing Be Used?

This security-rated fencing system is suited to sites where controlled access, perimeter visibility and resistance to intrusion are important. Typical applications include:

Educational campuses and school boundaries
Utility and service-provider sites
Commercial and industrial premises
Car parks and vehicle compounds
Sensitive data and communications sites
Warehouses, distribution centres and logistics facilities
Public-sector and infrastructure projects

Free Quote

Key Benefits of SR1 (A1) 868 Mesh Fencing

Security performance

The complete fencing system complies with LPS 1175 SR1 (A1) Issue 8, providing a recognised security classification for project specifications and perimeter protection strategies.

Rigid 868 twin-wire construction

Twin 8mm horizontal wires sandwich a 6mm vertical wire, creating a strong mesh panel with excellent rigidity. Every wire intersection is welded for structural consistency.

Clear visibility across the perimeter

The open 200mm x 50mm mesh format maintains visibility through the fence. This can support natural surveillance and the effective use of CCTV around commercial, industrial and infrastructure sites.

Tamper-resistant fixing system

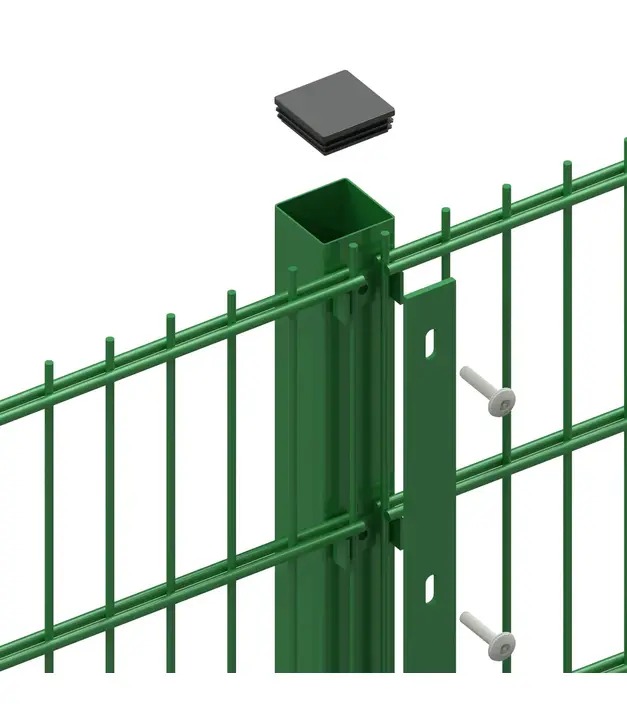

Panels are secured to posts with a continuous 40 × 5 mm steel clamp bar and tamper-resistant M8 fixings, including stainless-steel cup-square bolts, shear nuts and washers as specified.

Durable protective finish

Panels and posts are pre-galvanised or galvanised as specified and finished with polyester powder coating to the relevant standards. The standard colours are RAL 6005 Moss Green and RAL 9005 Black.

Choice of heights and post arrangements

Nominal fence heights range from 1800 to 3000 mm, with post sections and lengths selected to suit the height and installation method.

SR1 (A1) 868 Mesh Fencing Specification

Specification

Security standard: Complies with LPS 1175 SR1 (A1) Issue 8

Panel construction: Twin 8mm horizontal wires and single 6mm vertical wires

Panel width: 2508mm overall

Bottom clearance: 35mm recommended; 100mm maximum

Wire grade: BS 4102:1998 pre-galvanised wire

Powder-coating thickness: Minimum 100 microns

Post material: SHS or RHS steel posts sized for the fence height and arrangement

Clamp bar: Continuous 40mm x 5mm steel clamp bar, grade S275JR

Specification

Fencing standard: BS 1722 Part 14

Mesh spacing: 200mm horizontal centres x 50mm vertical centres

Nominal heights: 1800mm, 2000mm, 2400mm and 3000mm

Top edge: Maximum 30mm protruding 6mm vertical wires

Panel coating: Zinc coating to BS EN 10244-2:2009 and polyester powder coating to BS EN 13438:2005

Standard colours: RAL 6005 Moss Green and RAL 9005 Black

Post steel grade: BS EN 10210-2:1997

Fixings: Security screw or stainless-steel bolt, shear nut and washer arrangements as specified
