Palisade Fencing Installation Guide: Standards and Best Practices
Palisade fencing has established itself as one of the most effective deterrent systems for securing commercial and industrial properties across the UK. With its distinctive vertical pale design and formidable appearance, palisade fencing provides both psychological and physical barriers against unauthorised access. This comprehensive guide examines the technical aspects of palisade installation, ensuring your project meets the highest standards of security and durability.
Understanding Palisade Fencing Construction
Traditional palisade security fencing consists of vertical steel pales, typically manufactured from hot-rolled steel angle or ‘D’ section profiles. The pales are welded or bolted to horizontal rails, which are in turn fixed to robust steel posts. This modular construction allows for flexibility in design whilst maintaining structural integrity across varying ground conditions.
The standard pale profiles include triple point, rounded and notched, and Network Rail specification variants, each designed for specific security applications. Triple point pales, featuring three sharp points at the top, provide maximum deterrent effect, whilst rounded tops offer a less aggressive appearance suitable for schools and public areas.
Critical Foundation Requirements
The foundation system is arguably the most crucial aspect of any palisade installation. Posts must be set in concrete foundations with a minimum depth of 600mm for standard applications, increasing to 900mm or deeper for high-security installations or areas subject to vehicle impact.
The concrete mix should achieve a minimum compressive strength of 25N/mm² after 28 days, with rapid-set concrete acceptable for smaller installations. Post positioning accuracy is critical, with tolerances typically specified as ±5mm horizontally and ±10mm vertically to ensure proper panel alignment and aesthetic appearance.
Post Specifications and Spacing
Standard palisade posts are manufactured from Universal Column (UC) sections or rectangular hollow section (RHS) steel, depending on the application requirements. UC posts offer superior strength for high-security applications, whilst RHS posts provide adequate performance for standard commercial installations at reduced cost.
Post spacing is typically 2.7 metres for standard panels, though this can vary depending on wind loading calculations and specific site requirements. In exposed locations or where enhanced security is required, reducing post centres to 2.0 metres significantly improves system rigidity and resistance to attack.
Rail Systems and Pale Attachment Methods
The horizontal rail system transfers loads from the pales to the posts and provides the structural framework for the entire fence. Rails are typically manufactured from RHS steel, with 50mm x 25mm being standard for most applications. Heavy-duty installations may specify larger rail sections or additional intermediate rails for enhanced rigidity.
Pale attachment methods vary between welded and bolted systems, each offering distinct advantages. Welded construction provides superior security and weather resistance but requires skilled installation and limits future modifications. Bolted systems allow for easier maintenance and replacement of individual components but require higher-grade fixings to maintain security integrity.
Galvanising and Protective Coatings
Hot-dip galvanising remains the gold standard for palisade fence protection, providing decades of maintenance-free corrosion resistance. The galvanising process involves immersing the fabricated components in molten zinc at approximately 450°C, creating a metallurgical bond between the steel substrate and zinc coating.
Alternative coating systems include polyester powder coating over a galvanised base, offering enhanced aesthetics and additional protection. This dual-coating approach is particularly beneficial in coastal environments or areas with high atmospheric pollution levels where standard galvanising may be insufficient.
Wind Loading Calculations and Structural Design
Modern palisade fencing installations must comply with Eurocode standards for wind loading, requiring detailed structural calculations for each specific application. Wind pressure varies significantly with height, exposure, and geographical location, necessitating site-specific design rather than standard solutions.
Professional design services should calculate the ultimate and serviceability limit states, ensuring the fence remains stable under extreme weather conditions whilst maintaining its security function. These calculations directly influence post sizing, foundation depths, and rail specifications.
Installation Sequence and Quality Control
Correct installation sequence is vital for achieving a professional finish and optimal performance. The process typically begins with accurate setting out and excavation, followed by post installation with temporary bracing to maintain alignment during concrete curing.

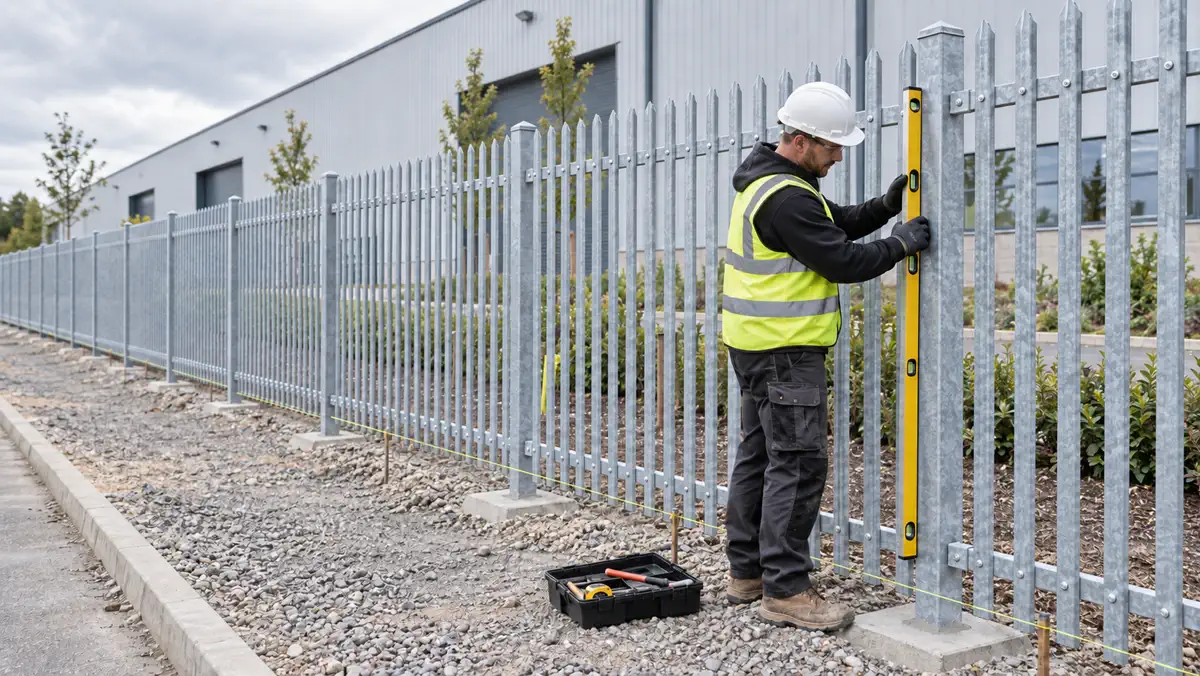

Panel installation should only commence once concrete foundations have achieved sufficient strength, usually after 24-48 hours depending on conditions. Each panel must be checked for level and plumb, with adjustments made through careful shimming and alignment procedures.
Maintenance Strategies for Longevity
Well-installed palisade fencing requires minimal maintenance, but regular inspections ensure optimal performance throughout its service life. Annual inspections should focus on post stability, rail condition, and the integrity of protective coatings, with particular attention to weld areas and bolt connections.
Any coating damage should be addressed promptly using compatible repair products to prevent corrosion initiation. Gate hinges and locking mechanisms require periodic lubrication and adjustment to maintain smooth operation and security effectiveness.
Cost Considerations and Value Engineering
Whilst palisade fencing costs may initially appear higher than alternative security solutions, the long-term value proposition is compelling. The combination of deterrent effect, durability, and low maintenance requirements often results in the lowest whole-life cost for high-security applications.
Value engineering opportunities exist through careful specification of post sizes, rail configurations, and coating systems to match the specific risk profile and environmental conditions of each installation.
